Property Keyframes
Property Keyframes let you animate a clip's Opacity or Volume over time, directly on the Timeline — no separate keyframe editor to open, no mode to switch into. A Data Track offers the same mechanism for driving one external value (OSC/UDP/TCP/Art‑Net/DMX/Control Panel) over time.
What Can Be Keyframed?
| Category | Property |
|---|---|
| Clip | Opacity |
| Clip / Track | Volume |
| Clip | Position X / Y, Width / Height, Rotation — as keyframe lanes |
| Data Track | Its own output value |
Effect parameters are not keyframeable from the Timeline. There is no generic "keyframe any property" system and no diamond-icon control in the Inspector for arbitrary properties; a clip's curves live on the clip in the Timeline.
The Curve Strip

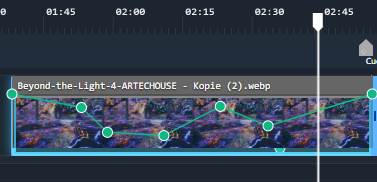

Every clip carries a thin curve strip drawn across the lower half of its Timeline segment: a green strip for Opacity on video/image clips, a blue strip for Volume on audio clips. The strip is the keyframe editor — there's nothing to enable first.
| Action | How |
|---|---|
| Add a keyframe | Double-click on the strip at that time/value, or Alt+Click near the existing curve line |
| Move a keyframe | Drag it — left/right changes time, up/down changes value |
| Open a keyframe's menu | Right-click it (see The Keyframe Menu) |
| Delete a keyframe | Right-click it → Delete keyframe, or select it and press Delete |
| Open the larger editor | Click the small magnifying-glass icon in the strip's corner |
The first and last keyframe on a clip are pinned in time (they mark the clip's start and end) — they can only be dragged vertically, to change their value.
Selecting a Keyframe
Clicking a keyframe (without dragging) selects it and opens its exact Time and value (Opacity/Volume) in the Inspector panel — the same numeric editor a Data Track keyframe already shows — so you can read or type an exact number instead of eyeballing a drag. With a keyframe selected:
| Key | Effect |
|---|---|
| ← / → | Move the keyframe 1 s earlier/later (0.1 s with Shift) |
| ↑ / ↓ | Raise/lower its value by 1% (0.1% with Shift) |
| Delete / Backspace | Remove it |
| Escape | Deselect |
The pinned first/last keyframe ignores a left/right nudge, same as dragging it.
The Keyframe Menu
Right-clicking a keyframe opens a menu for that one keyframe. (It used to delete it on the spot — the only gesture in the editor that destroyed something without asking.)
| Row | Effect |
|---|---|
| Copy value | Copies that keyframe's value — the row names the number |
| Paste value | Writes the copied value onto this keyframe, leaving its time alone. Only shown once something has been copied |
| Copy Opacity/Volume curve | The same whole-curve copy the clip's own context menu offers |
| Paste Opacity/Volume curve | Pastes it here. Only shown when the clipboard holds a curve of this kind |
| Delete keyframe | Removes it. Greyed out on the pinned first/last keyframe, which marks the clip's start or end |
The value clipboard is separate from the curve clipboard, so copying a level to hand to three more keyframes does not throw away the curve you copied a minute ago. A value pasted onto a curve with a different range — a Data Track's own min/max against Opacity's 0–100% — arrives at the same relative height (80% of 0–100 lands as 204 on 0–255); between two curves of the same range it is the number itself.
The same menu is on a Data Track's keyframes, with the track's own numbers instead of percent and a Copy curve / Paste curve pair for the whole data curve (its keyframes and its Linear/Step mode). A Data Track curve has no pinned endpoints, so any of its keyframes can be deleted.
Copy, Paste & Fade Shorthand
Right-clicking a clip on the Timeline offers four actions on its Opacity (or Volume, for audio clips) curve:
| Action | Effect |
|---|---|
| Copy Opacity/Volume Curve | Copies the clip's whole curve (keyframes + the Smooth switch) |
| Paste Opacity/Volume Curve | Pastes it onto another clip, keeping ABSOLUTE times (a 1 s fade-in stays a 1 s fade-in). Keyframes past the target clip's end are dropped, and the curve is completed at the clip's end with the value the copied curve had at that moment |
| Fade In 0.5 s · 1 s · 2 s | Ramps 0% → 100% over the first 0.5, 1 or 2 seconds |
| Fade Out 0.5 s · 1 s · 2 s | Ramps 100% → 0% over the last 0.5, 1 or 2 seconds |
Paste and the fades work on a selection. Select several clips (Ctrl+click), right-click one of them, and the row reads "Paste Opacity Curve on 5 clips" / "Fade In (5 clips)" — one click applies it to all of them, and one Ctrl+Z takes all of it back. A copied Opacity curve is only pasted onto video clips and a copied Volume curve only onto audio clips; the others in the selection are left alone.
Fade In and Fade Out only touch their own end of the curve — applying both gives a fade-in-then-out, rather than one clobbering the other. A fade-out needs the clip's length (it is anchored at the clip's end), so on a clip that has not reported one yet it is skipped with a notice.
Keyframe Lanes: Position, Size, Rotation
A clip can animate its placement: one extra lane under the Opacity strip per animated property, each with its own keyframe curve.
| Lane | Value |
|---|---|
| Position X / Position Y | Percent of the clip's positioning basis — the field it is bound to, else the screen. 0 % is the clip's own origin; negative values move it left / up. |
| Width / Height | Percent of that same basis; 100 % fills it. |
| Rotation | Degrees, about the centre of the clip's box. |
Adding a lane. Two ways. Right-click the clip → Add Keyframes and pick X, Y, W, H or Rot; the new lane starts as a flat line at the clip's current value, so nothing moves on the wall until you drag a keyframe.
Showing and hiding the lanes. A clip carrying keyframe lanes wears a small twisty at its top right — ▸ 2 closed, ▾ 2 open — and clicking it toggles the lanes either way, so they open and close from the clip itself. ▸ keyframes in the track's sidebar does the same for the whole track. While the lanes are open the strip behind them is darkened — only that band, so the curves read clearly while the clip keeps its own picture and colour either side of the lanes.
Editing. A keyframe lane is the same editor as the Opacity strip: double- click or Alt+click to add a keyframe, drag to move it, right-click for the keyframe menu, the magnifier for the larger editor, Linear / Smooth for the whole curve. The first and last keyframes are pinned in time. Values snap to a tenth of a percent (or degree), and arrow keys nudge by 1 — 0.1 with Shift.
Removing a lane. Right-click the clip → Remove Keyframes → the lane's chip. The clip returns to the static Size / Offset / Orientation it has in the Inspector.
While a lane exists, typing a new value records it. Change X, Y, W, H or the angle in the Inspector — or drag the element in the Layout Designer — and the value lands as the keyframe at the playhead instead of changing the static number. Move the playhead, set the next value, and the curve grows keyframe by keyframe. A value typed in pixels needs the clip's positioning basis, which the Inspector's own layout carries; a bare pixel write from elsewhere without one is kept as the static value and reported.
Replacing a clip's file keeps its lanes. Dragging a new file onto an existing clip in the Timeline, or using Replace media file…, keeps everything you authored on that slot: the keyframe lanes, the Opacity or Volume curve, the crop, the colour correction and the mapping. Only what described the old file is refreshed — its name, size, frame rate and thumbnails.
While a lane exists, it wins
A position, size or rotation lane overrides the static value in the Inspector's Size, Position & Scaling section for as long as it exists, including a value a Data Track writes there. Remove the lane to hand control back.
On the Canvases
The Layout Designer draws an animated element where its curves put it at the engine's playhead, not at its static position — the same box the wall is showing. Scrub or play the composition and the element travels its curve on the canvas; a lane you have just drawn can be checked without going on air.
Dragging or resizing such an element writes a keyframe at that playhead, so it stays where you dropped it. Both halves read one clock: an element is drawn where the next drag would record it.
A stopped element sits at its start
With nothing playing there is no playhead to read, so an animated element is drawn at the value its curve begins with — where the engine puts it the moment the element goes on air.

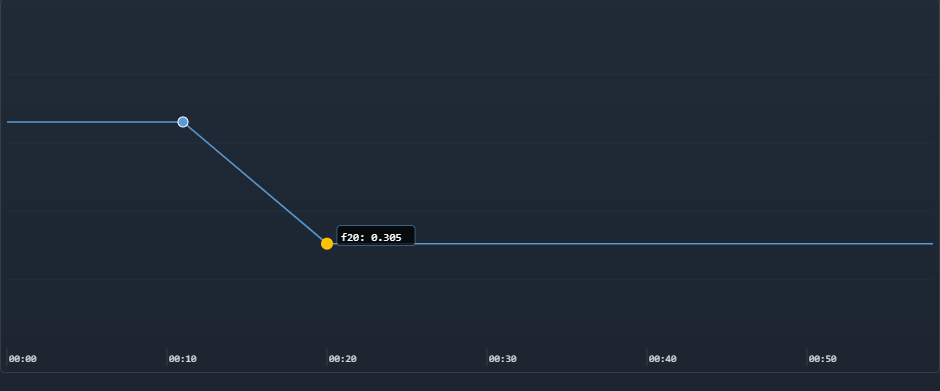

The Expanded Editor
Clicking the magnifying-glass icon opens a larger modal with a time ruler and dedicated navigation:
| Control | Effect |
|---|---|
| Scroll | Pan the view |
| Ctrl+Scroll | Zoom in/out |
| Ctrl+← / Ctrl+→ (or the toolbar arrows) | Pan by a fixed step |
| Ctrl+0 (or the 100% button) | Reset the view |
| Linear / Smooth button | Toggle ease-in/out interpolation (see below) |
Interpolation
By default a curve ramps linearly between keyframes — a constant rate of change. The Linear / Smooth toggle in the expanded editor switches the whole curve to an eased (smoothstep) ramp instead: each segment starts and ends at zero slope, so a fade feels less mechanical. This is a single switch per curve — like a Data Track's Linear/Step choice — not a per-keyframe interpolation picker; there is no Ease In, Ease Out, or Step option for Opacity/Volume curves.
Example: Opacity Fade-In
- Place a clip on the Timeline.
- Drag the keyframe at the clip's start down to the bottom of the strip (Opacity = 0%).
- Double-click a little further along the strip to add a second keyframe, then drag it to the top (Opacity = 100%).
- Optionally open the expanded editor and turn on Smooth to ease the transition instead of a straight ramp.
The clip now fades from fully transparent to fully opaque. Audio clips work identically for Volume.
