Project Export

The Project Export feature packages your entire Exaplay project — the .vpp file and all referenced media — into a single portable ZIP archive. Use it to:

• Transfer a show from a programming machine to a show machine
• Archive a finished show with all its media
• Share a project with a collaborator on another system

Exporting a Project

1. Click the burger menu (☰) in the top-left of the header.
2. Choose Export Project.

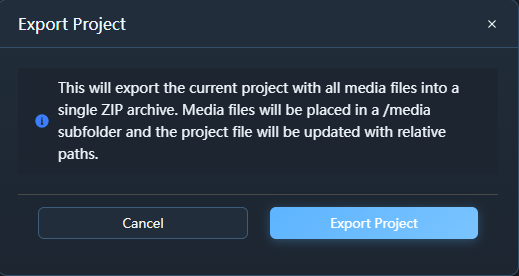

3. A dialog appears showing the export status.
4. Click Export Project in the dialog to start.
5. Once complete, the ZIP file downloads automatically to your browser's default download location.

What Gets Exported

Included	Not included
.vpp project file (with rewritten relative paths)	Live sources (NDI, Spout, capture card — configuration is preserved)
All video files referenced in the project	Files that no longer exist on disk
All image files referenced	Temporary cache files
All audio files referenced

Archive Structure

project-name-export.zip
├── project-name.vpp        ← project file with relative paths
└── media/
    ├── background_loop.mov
    ├── title_screen.png
    ├── ambient_music.wav
    ├── outro_1.mov         ← renamed automatically (collision avoidance)
    └── outro_2.mov

All media paths inside the .vpp file are rewritten to media/filename.ext so the project loads correctly wherever the ZIP is extracted.

Filename Collision Handling

If two media files in different folders share the same filename (e.g. intro.mov in /Shows/A/ and /Shows/B/), they are automatically renamed to intro_1.mov and intro_2.mov in the archive to avoid overwrites.

Using the Exported Project on Another Machine

1. Extract the ZIP to any folder (e.g. C:\Shows\MyShow\).
2. Open Exaplay 3.
3. Use File → Open and navigate to the extracted .vpp file.
4. All media loads from the media/ subfolder automatically — no relinking required.

Limitations

• Large projects may take time to export depending on total media size. The progress bar in the export dialog shows progress.
• Live sources (NDI, Spout, etc.) are not exported as files, only their configuration metadata.
• The export is rate-limited to 5 requests per minute for security.

Security

The export endpoint includes path-traversal protection — only files actually referenced in the project can be included. It is not possible to export arbitrary files from the server filesystem via this feature.

Troubleshooting

Problem	Solution
Some media files missing in ZIP	Check if those files exist on disk; live sources are intentionally excluded
Export fails immediately	Save the project first (Ctrl+S), then retry
Very slow export	Normal for large media libraries; the ZIP is created in real time from disk reads
"Rate limit exceeded" error	Wait one minute and try again
