External Show Control — IN/OUT Commands

This guide explains how to connect Exaplay 3 to an external show control system (ETC Eos lighting console, Medialon, QLab, Crestron, Q-SYS, CueLab, Alcorn McBride, a custom PLC, or any other device that can send network commands). It covers every supported protocol, with tested command examples and a troubleshooting checklist for each direction.

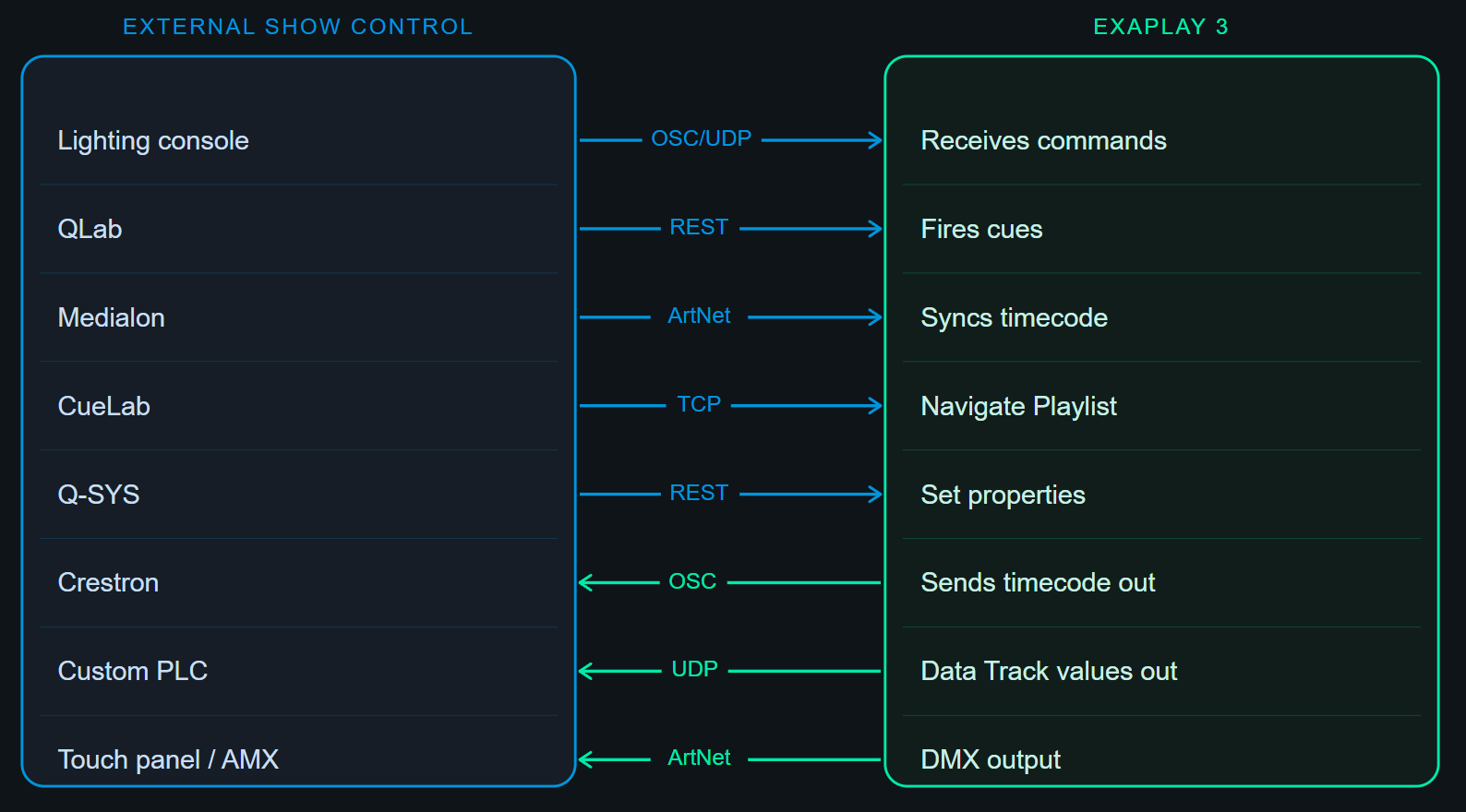

Show Control

Part 1 — Commands INTO Exaplay (Incoming)

1A — HTTP Control (most flexible)

Any device that can send an HTTP POST request can control Exaplay.

Fire a cue by name:

bash

curl -X POST http://192.168.1.5:8123/cue/trigger \
  -H "Content-Type: application/json" \
  -d '{"name": "Scene 1 - Opening"}'

Fire a cue by number:

bash

curl -X POST http://192.168.1.5:8123/cue/trigger \
  -H "Content-Type: application/json" \
  -d '{"number": 3}'

Set a property value (e.g. opacity of a layer):

bash

curl -X POST http://192.168.1.5:8123/data \
  -H "Content-Type: application/json" \
  -d '{"type":"exaObj","path":"comp.Main.layer.0.opacity","values":{"value":75}}'

Play a composition (look up the composition UID via GET /project first):

bash

curl -X POST http://192.168.1.5:8123/project \
  -H "Content-Type: application/json" \
  -d '{"req":"composition.play","src-uid":12345678}'

The same POST /project endpoint also supports composition.pause, composition.stop, composition.set-time, composition.next and composition.prev. See the REST API reference for the full list.

Stop all playback:

bash

curl -X POST http://192.168.1.5:8123/stop

Tip: To find the correct path for any property, open it in the Inspector, click the 🔗 link icon, and read the path in the panel options.

1B — OSC (Open Sound Control)

OSC is supported by virtually every professional show control system.

Exaplay OSC listen port: 8000 (default — configurable in Config → Network → OSC)

The address pattern is /<prefix>/<composition-id>/<command> — the prefix defaults to exaplay and <composition-id> is the composition's variable name (e.g. comp_main).

OSC Address	Arguments	Action
`/exaplay/<comp>/play`	(none)	Start the named composition
`/exaplay/<comp>/pause`	(none)	Pause the named composition
`/exaplay/<comp>/stop`	(none)	Stop the named composition
`/exaplay/<comp>/cuetime`	`f` or `i` (seconds)	Seek to position (client instances only)
`/exaplay/<comp>/cue`	`i` (cue index)	Fire a cue by index in a Timeline or Playlist
`/exaplay/global/showmode`	`s` (`on`/`off`/`toggle`) or `i/f` (`1`/`0`)	Set global Show Mode
`/exaplay/global/restart`	(none) or `s` (`project`/`clean`)	Restart exaplay (reload current project, or `clean` for empty)
`/timecode` (configurable)	`f`, `i`, or `s` (`HH:MM:SS:FF`)	Drive timecode-slaved compositions

Note: OSC dispatching is keyed by composition variable name — to fire a cue by name (across all compositions), use the HTTP endpoint POST /cue/trigger instead.

Example — ETC Eos console firing cue 3 in comp_main:

In the Eos Macro editor, add a Network command:

/exaplay/comp_main/cue 3
  UDP to 192.168.1.5:8000

Example — Qlab sending OSC:

In Qlab, add a Network cue.
Set Type to OSC message.
Set destination to 192.168.1.5:8000.
Set message: /exaplay/comp_main/play.

Example — Show Mode ON/OFF via OSC:

/exaplay/global/showmode "on"
/exaplay/global/showmode "off"
/exaplay/global/showmode "toggle"

Example — Restart exaplay via OSC:

/exaplay/global/restart              # restart and reload the current project
/exaplay/global/restart "project"    # same as above (explicit)
/exaplay/global/restart "clean"      # restart with no project loaded

1C — ArtNet Timecode

Not available in this build. ArtNet timecode receive is not yet wired up, so a lighting console cannot drive Exaplay over ArtNet TC today. Use OSC, LTC, or MTC for frame-accurate sync instead (see Timecode & ArtNet Sync). The steps below describe the planned behaviour.

For frame-accurate sync driven by a lighting console (when available):

Open Config → Network → ArtNet.
Enable Receive ArtNet Timecode.
Ensure the console and Exaplay are on the same subnet (ArtNet timecode is broadcast and not addressed to a universe).

On the lighting console side, enable ArtNet Time Code output on the same subnet.

Exaplay's Transport bar shows TC: Locked (green) when the sync is established.

Supported frame rates: 24, 25, 29.97 DF, 30 fps.

1D — LTC (Linear Timecode via Audio)

Connect the LTC output from your console to an audio input on the Exaplay ASIO interface.
Open Config → Audio Settings → Timecode Input.
Select the channel, set the frame rate to match the console.
The Transport bar shows TC: Locked when the signal is detected.

1E — TCP Text Protocol

Exaplay accepts persistent TCP connections that carry simple comma-delimited commands. This is ideal for Medialon, Alcorn McBride, Crestron/AMX, and any custom PLC that works natively with raw TCP sockets.

Default port: 8100 (configure in Config → Network → TCP Listen)

Command format: COMMAND,COMPOSITION_ID[,ARGUMENT] followed by \r or \r\n

Retrieve composition variable names first:

→ get:complist
← comp_main,Main Show
← comp_lobby,Lobby Loop
← END

Common transport commands:

→ play,comp_main
← OK

→ stop,comp_main
← OK

→ showmode:on
← OK

→ showmode:off
← OK

→ get:showmode
← 1

→ get:status,comp_main
← 1,42.1230,2527,2,0.0000
  (STATUS, TIME_SECONDS, FRAME, CUEINDEX, TOTAL)

Playlist navigation:

→ next,comp_lobby
← OK

→ set:cue,comp_lobby,3
← OK

Use the same command pattern for additional transport, status, and Playlist actions.

If UDP control listen is enabled, the same text commands are available over UDP, including:

showmode:on
showmode:off
showmode:toggle
get:showmode

Part 2 — Commands OUT of Exaplay (Outgoing)

2A — OSC Output

Exaplay can transmit its current playback position and custom events to any OSC listener.

Configure OSC output:

Open Config → Network → OSC Output.
Enter the destination IP and port (e.g. 192.168.1.20:9000).
Choose the Timecode OSC Address pattern.

Exaplay sends /timecode/hh/mm/ss/ff to the configured destination on every frame during playback.

Custom OSC via Data Tracks:

Any Data Track can output to an OSC address. This lets you send a value (float) to any OSC address at any moment in the timeline:

Data Track "LightingMaster"
  Output Type: OSC
  OSC Address: /eos/fader/1/value
  Destination: 192.168.1.20:8000

  Keyframes: fade from 0 to 1.0 over 5 seconds

2B — ArtNet DMX Output

Exaplay can drive lighting fixtures, dimmers, and LED controllers directly over Art-Net, independent of any lighting console. This is useful for installations where Exaplay is the only show control system.

See ArtNet & DMX Output for the full guide.

2C — UDP Output

Any Data Track can output raw UDP datagrams to any device that accepts them:

Data Track "MotionRig"
  Output Type: UDP
  Destination: 192.168.1.30:9500

The current interpolated value is sent as a 4-byte big-endian float on every frame.

Part 3 — Verifying Communication with the Monitor

The Monitor tab is the single most important tool for diagnosing show control integration issues.

How to Use the Monitor Tab

Open the Control View (/control).
Click the 📡 Monitor tab.
Trigger a command from the external system.
Check the Event Log for an entry.

What Good Looks Like

Protocol	Event Log entry
HTTP trigger	`POST /cue/trigger — 200 OK from 192.168.1.20`
OSC received	`OSC /exaplay/comp_main/play from 192.168.1.20:8000`
ArtNet TC locked	`ArtNet TC 00:01:23:15 from 192.168.1.20 — TC LOCKED`
ArtNet DMX sent	`ArtNet OpDmx → Universe 0 → 192.168.1.50`
OSC sent (outgoing)	`OSC /eos/fader/1/value 0.75 → 192.168.1.20:8000`

If an expected entry is missing, the packet never reached Exaplay — see Part 4.

Part 4 — Troubleshooting

No incoming commands received

Check	What to do
IP address	Open Monitor tab → Host Information card → confirm the correct IP address
Port	Confirm the sending device is targeting the correct port (REST: `8123`, OSC: `8000`, TCP: `8100`)
Firewall	Allow inbound UDP 8000 and TCP 8123, 8100 in Windows Defender Firewall
Subnet	Both devices must be on the same subnet (e.g. `192.168.1.x / 255.255.255.0`)
OSC address	OSC addresses are case-sensitive — `/exaplay/comp_main/play` ≠ `/Exaplay/comp_main/play`

Windows Firewall — allow Exaplay ports:

batch

netsh advfirewall firewall add rule name="Exaplay HTTP" dir=in action=allow protocol=TCP localport=8123
netsh advfirewall firewall add rule name="Exaplay TCP Control" dir=in action=allow protocol=TCP localport=8100
netsh advfirewall firewall add rule name="Exaplay OSC" dir=in action=allow protocol=UDP localport=8000
netsh advfirewall firewall add rule name="Exaplay ArtNet" dir=in action=allow protocol=UDP localport=6454

ArtNet timecode not locking

ArtNet timecode receive is not available in this build — it cannot lock regardless of network setup. Use OSC, LTC, or MTC for external timecode sync. The checks below apply to the planned ArtNet TC feature.

Check	What to do
Network	Exaplay and console must be on the same subnet for ArtNet broadcast (ArtNet timecode is not addressed to a universe)
Frame rate	Project frame rate (Config → Video Settings) must match the console's TC frame rate
Monitor Event Log	ArtNet TC packets should appear in the log — if not, the network is blocking the packets

OSC going out but console not receiving

Check	What to do
Destination IP	Confirm the console's IP in Config → Network → OSC Output
Destination port	Confirm the console's OSC receive port matches the configured destination port
Console OSC enabled	Many consoles require OSC receive to be explicitly enabled
Firewall on the console machine	Ensure the console's firewall allows incoming UDP on the OSC port
Monitor Event Log	Outgoing OSC messages should appear in the log — confirm they are being sent

HTTP control returns 404 or connection refused

Check	What to do
Engine running	The engine (not just the UI) must be running — check the tray icon
Port	HTTP control uses port `8123` — ensure no other app is using this port
Endpoint path	Check the exact endpoint path (case-sensitive); verify the property path in the Inspector if needed
JSON format	Request body must be valid JSON; `Content-Type: application/json` header is required

Part 5 — Quick Reference

Incoming commands summary

Protocol	Port	Enable in
REST HTTP	`8123` (TCP)	Always on
OSC	`8000` (UDP)	Config → Network → OSC
ArtNet TC (receive)	`6454` (UDP)	Config → Network → ArtNet
LTC	ASIO audio input	Config → Audio → Timecode Input
TCP Text Protocol	`8100` (TCP)	Config → Network → TCP Listen
WebSocket events	`8123` (WS)	Always on (same port as HTTP)

Outgoing commands summary

Protocol	Port	Enable in
OSC output	Configurable UDP	Config → Network → OSC Output
ArtNet DMX	`6454` (UDP)	Data Track → Output Type: ArtNet
UDP raw	Configurable	Data Track → Output Type: UDP
WebSocket (effects)	`3001` (WS)	Effects Server (auto-started)

Part 6 — Integration Examples by System

ETC Eos / Ion

Enable OSC Rx on Exaplay (port 8000).
In Eos, create a Macro with a Network cue: OSC /exaplay/comp_main/cue 1 → target 192.168.1.5:8000. To trigger a cue by name (any composition), use a Network cue of type String sending an HTTP POST to http://192.168.1.5:8123/cue/trigger with body {"name":"My Cue"} instead.
For bidirectional: configure Eos OSC Tx to send timecode, and Exaplay OSC Rx to receive it.

Qlab (Mac)

Add a Network cue in Qlab.
Select OSC or HTTP based on preference.
For OSC: target 192.168.1.5:8000, address /exaplay/comp_main/play (or /exaplay/comp_main/cue with an integer argument to fire a specific cue).
For HTTP (fires a cue by name across all compositions): target http://192.168.1.5:8123/cue/trigger, method POST, body {"name":"My Cue"}.

Medialon / Alcorn McBride

Both systems support TCP socket connections natively — this is the recommended integration path.

Configure a TCP Device in Medialon/Alcorn targeting 192.168.1.5:8100.
Send commands as ASCII strings with \r or \r\n terminators (e.g. play,comp_main\r).
Alternatively, use the HTTP control interface — both systems also support HTTP GET/POST natively — targeting port 8123.

Use the same command pattern for other playback and Playlist actions.

Crestron / AMX Touch Panels

Crestron and AMX processors can control Exaplay over the TCP Command Protocol (recommended for cue navigation) or via the HTTP control interface (recommended for property control and status queries).

Option A — TCP (SIMPL+ / SIMPL# Pro)

Use the built-in TCP/IP client symbol (TCPClient in SIMPL+) to open a persistent connection to Exaplay on port 8100.

// SIMPL+ pseudocode
TCP_CLIENT ExaplayClient;
STRING txBuf[100], rxBuf[100];

FUNCTION PlayComp(STRING compId)
    txBuf = compId + "\x0D\x0A";    // "play,comp_main\r\n"
    ExaplayClient.SendData(txBuf);
END_FUNCTION

In SIMPL#:

csharp

var client = new TCPClient("192.168.1.5", 8100, 4096);
client.ConnectToServer();
client.SendData(Encoding.ASCII.GetBytes("play,comp_main\r\n"), 16);

Common commands for a touch-panel button map:

Button	Command sent
Play	`play,comp_main\r\n`
Stop	`stop,comp_main\r\n`
Cue 1	`set:cue,comp_main,1\r\n`
Next	`next,comp_main\r\n`
Volume 80%	`set:vol,comp_main,80\r\n`

Option B — REST (HTTP Client)

Use Crestron's HttpClient (SIMPL# Pro) or a third-party REST module:

csharp

var http = new HttpClient();
http.Post(
    "http://192.168.1.5:8123/cue/trigger",
    "application/json",
    "{\"name\":\"Scene 1 - Opening\"}"
);

Tip: Use HTTP control for status feedback (for example polling GET /status) and the TCP protocol for low-latency button presses.

Q-SYS (QSC)

Q-SYS cores run a Lua 5.3 scripting environment with built-in TcpSocket and HttpClient objects. Both work well with Exaplay.

TCP integration (recommended — persistent connection, low latency)

Add a Scriptable Controls component in Q-SYS Designer and use the following Lua snippet:

lua

-- Q-SYS Lua: Exaplay TCP control
local EXAPLAY_IP   = "192.168.1.5"
local EXAPLAY_PORT = 8100
local sock         = TcpSocket.New()
local connected    = false

local function connect()
  sock:Connect(EXAPLAY_IP, EXAPLAY_PORT)
end

sock.EventHandler = function(s, evt, err)
  if evt == TcpSocket.Events.Connected then
    connected = true
    print("Exaplay: connected")
  elseif evt == TcpSocket.Events.Disconnected then
    connected = false
    Timer.CallAfter(connect, 5)   -- auto-reconnect after 5 s
  elseif evt == TcpSocket.Events.Data then
    local resp = s:Read(s:Lines())
    print("Exaplay response: " .. resp)
  end
end

local function send(cmd)
  if connected then
    sock:Write(cmd .. "\r\n")
  end
end

-- Wire up Named Controls
Controls["Play"].EventHandler = function()
  send("play,comp_main")
end

Controls["Stop"].EventHandler = function()
  send("stop,comp_main")
end

Controls["Next"].EventHandler = function()
  send("next,comp_main")
end

Controls["SetCue"].EventHandler = function()
  -- value of a Named Control slider = cue number
  send(string.format("set:cue,comp_main,%d", math.floor(Controls["SetCue"].Value)))
end

connect()

HTTP integration (for one-shot triggers or status polling)

lua

-- Q-SYS Lua: fire a cue via REST
HttpClient.Download({
  Url     = "http://192.168.1.5:8123/cue/trigger",
  Method  = "POST",
  Headers = { ["Content-Type"] = "application/json" },
  Data    = '{"name":"Scene 1 - Opening"}',
  EventHandler = function(tbl, code, data, err)
    if code == 200 then
      print("Cue fired OK")
    else
      print("Error: " .. tostring(err))
    end
  end
})

Note: Q-SYS TcpSocket keeps the TCP session open across multiple triggers, which is more efficient than a new HTTP request per cue. Use TCP for real-time control and HTTP for infrequent or complex requests.

CueLab

CueLab (by Avolites/Cogenta) supports OSC and REST HTTP output — both work natively with Exaplay.

OSC setup (simplest)

In CueLab, open Settings → Network.
Under OSC Output, add a destination: IP 192.168.1.5, Port 8000.
For each CueLab cue that should trigger Exaplay, add an OSC Action addressed at the target composition (e.g. comp_main):
- Address: /exaplay/comp_main/cue
- Argument (integer): cue index

CueLab OSC Action	What Exaplay does
`/exaplay/comp_main/play`	Start composition `comp_main`
`/exaplay/comp_main/stop`	Stop composition `comp_main`
`/exaplay/comp_main/pause`	Pause composition `comp_main`
`/exaplay/comp_main/cue 3`	Fire cue index 3 in `comp_main`
`/exaplay/comp_main/cuetime 12.5`	Seek `comp_main` to 12.5 s (client instances only)

REST setup (more control)

In CueLab, create a cue with a Web Request action.
Set Method to POST and URL to http://192.168.1.5:8123/cue/trigger.
Set Body to {"name":"Scene 1 - Opening"} and Content-Type to application/json.

Bidirectional — receive Exaplay timecode in CueLab

In Exaplay, open Config → Network → OSC Output.
Set destination to <CueLab machine IP>:<CueLab OSC Rx port> (check CueLab Settings → Network → OSC Input).
Exaplay will send /timecode/hh/mm/ss/ff on every frame — CueLab can use this to auto-follow Exaplay's timeline.

Summary Checklist

[ ] Engine IP address confirmed (Monitor tab → Host Information)
[ ] Firewall rules added for ports 8123 (TCP), 8100 (TCP) and 8000 (UDP)
[ ] OSC Rx enabled on the correct port
[ ] OSC Tx configured with the correct destination IP/port
[ ] ArtNet sync: Exaplay and console are on the same subnet for ArtNet broadcast (if using ArtNet sync)
[ ] LTC audio channel and frame rate configured (if using LTC)
[ ] HTTP control tested from the external system
[ ] Monitor → Event Log shows incoming commands from the external system
[ ] Monitor → Event Log shows outgoing commands to the external system
[ ] Full show run-through with all external triggers verified

External Show Control — IN/OUT Commands ​

Part 1 — Commands INTO Exaplay (Incoming) ​

1A — HTTP Control (most flexible) ​

1B — OSC (Open Sound Control) ​

1C — ArtNet Timecode ​

1D — LTC (Linear Timecode via Audio) ​

1E — TCP Text Protocol ​

Part 2 — Commands OUT of Exaplay (Outgoing) ​

2A — OSC Output ​

2B — ArtNet DMX Output ​

2C — UDP Output ​

Part 3 — Verifying Communication with the Monitor ​

How to Use the Monitor Tab ​

What Good Looks Like ​

Part 4 — Troubleshooting ​

No incoming commands received ​

ArtNet timecode not locking ​

OSC going out but console not receiving ​

HTTP control returns 404 or connection refused ​

Part 5 — Quick Reference ​

Incoming commands summary ​

Outgoing commands summary ​

Part 6 — Integration Examples by System ​

ETC Eos / Ion ​

Qlab (Mac) ​

Medialon / Alcorn McBride ​

Crestron / AMX Touch Panels ​

Q-SYS (QSC) ​

CueLab ​

Summary Checklist ​

External Show Control — IN/OUT Commands

Part 1 — Commands INTO Exaplay (Incoming)

1A — HTTP Control (most flexible)

1B — OSC (Open Sound Control)

1C — ArtNet Timecode

1D — LTC (Linear Timecode via Audio)

1E — TCP Text Protocol

Part 2 — Commands OUT of Exaplay (Outgoing)

2A — OSC Output

2B — ArtNet DMX Output

2C — UDP Output

Part 3 — Verifying Communication with the Monitor

How to Use the Monitor Tab

What Good Looks Like

Part 4 — Troubleshooting

No incoming commands received

ArtNet timecode not locking

OSC going out but console not receiving

HTTP control returns 404 or connection refused

Part 5 — Quick Reference

Incoming commands summary

Outgoing commands summary

Part 6 — Integration Examples by System

ETC Eos / Ion

Qlab (Mac)

Medialon / Alcorn McBride

Crestron / AMX Touch Panels

Q-SYS (QSC)

CueLab

Summary Checklist
